Rear wall for container roofing 10m width, PRIMEtex 2300, white
Rear wall for container roofing 10 m Width
This 10 m rear wall is for container shelters and is ideally suited for mounting onto High Cube containers. It offers additional protection against wind and weather, consists of sturdy, corrosion-protected steel poles and an extra robust PVC tarpaulin. The PVC material is UV-resistant, 100% waterproof and has a 3 times higher tear resistance than conventional PVC tarpaulins. The rear wall is fixed with tensioning cables. Fully galvanised steel pegs (approx. 100 cm long) for mounting on soft floors are included in the delivery.
Frame
- Robust steel linkage protected against corrosion by galvanizing
- Steel tubes:
- Diameter: ca. 48 mm
- Wall thickness: ca. 1.6 mm
- Connector:
- Diameter: ca. 34 mm
- Wall thickness: ca. 1.4 mm
- Special tensioning cable system for fixing the tarpaulin
- Solid, 100 cm long solid steel pegs for mounting on soft floors
Tarpaulin
- Tearing-strength*25: 2300 N equivalent to 230 kg according to DIN EN ISO 13934-1
- 3 x more tear resistant than standard PVC tarpaulins
- High resistance to UV light
- Excellent UV protection of 50+
- Perfect weather protection, 100% waterproof
- Stainless brass eyelets
Reaction to fire
The tarpaulin's reaction to fire has been tested by an accredited laboratory in accordance with DIN EN 13823:2020 and DIN ISO 11925-2. The test results classify the tarpaulin's reaction to fire according to the harmonised European standard EN 13501-1 as follows:
- Class C-D, s3, d0

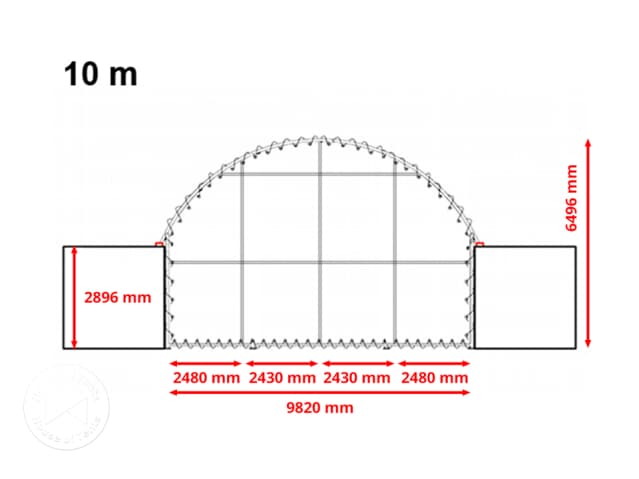

Dimensions
| Width: | ca. 10 m |
| Ridge height: | ca. 6.5 m |
